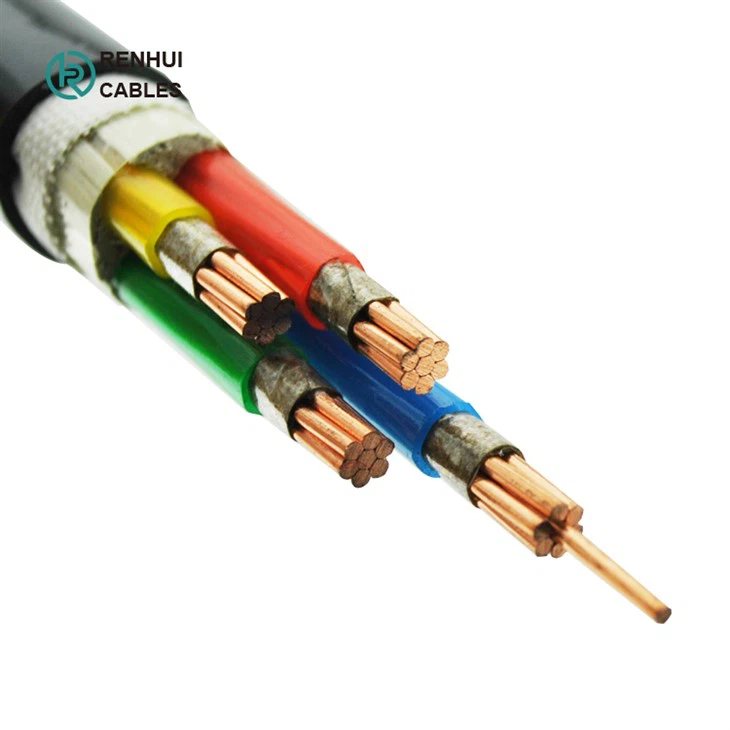

KABEL YJV
1. Permohonan : KABEL YJV
Kabel IEC 60502-1 ini digunakan untuk bekalan elektrik dalam sistem pemasangan voltan rendah, Ia sesuai untuk pemasangan di dalam dan di luar rumah, di saluran kabel, di bawah tanah, di stesen janakuasa dan pensuisan, pengagihan tenaga tempatan, loji industri, di mana tiada risiko kerosakan mekanikal.
 |
 |
 |
2. Pembinaan: kabel voltan rendah
-Konduktor
Pengalir kuprum pepejal Kelas 1, Pengalir Kuprum Terkandas Kelas 2 hingga IEC 60228, BS EN 60228.
-Penebat
Bahan XLPE
-Sarung Luar:PVC tersemperit.
3. Standard: KABEL YJV
Kabel IEC60502-1.
Asap rendah (menurut EN 61034-2)
Acc kalis api. EN 50265-2-1
4. Parameter Kabel: KABEL YJV
|
Teras tunggal |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Dua teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Tiga teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
mm |
Mm |
Mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Empat teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Berbilang teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |
