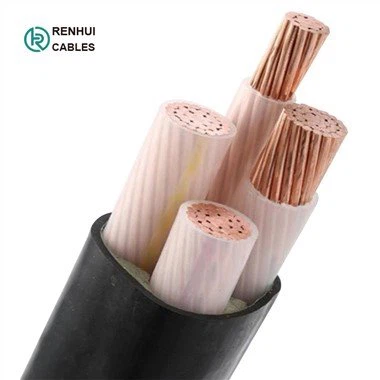

U-1000 R2V
1. Aplikasi :U-1000 R2V
0.6/1KV, U{3}} R2V, CU/XLPE/PVC Kabel boleh digunakan dalam semua pemasangan kuasa voltan rendah.
Kabel berbilang teras disesuaikan dengan pemasangan alat kawalan jauh dan telekawal.
 |
 |
 |
2. Pembinaan:U-1000 R2V
-Konduktor
Pengalir kuprum pepejal Kelas 1, Pengalir Kuprum Terkandas Kelas 2 hingga IEC 60228, BS EN 60228.
-Penebat
Bahan XLPE
-Kod Warna
Kod Warna (1) :
1 Teras: Lutsinar, Merah atau Hitam
2 Teras: Merah, Hitam
3 Teras: Merah, Kuning, Biru
4 Teras: Merah, Kuning, Biru, Hitam
5 Teras: Merah, Kuning, Biru, Hitam, Hijau
Di atas 5 Teras: Teras Hitam dengan angka Putih
Kod Warna (2) :
1 Teras: Lutsinar, Coklat atau Biru
2 Teras: Coklat atau Biru
3 Teras: Coklat, Hitam, Kelabu
4 Teras: Biru, Coklat, Hitam, Kelabu
5 Teras: Hijau/Kuning, Biru, Perang, Hitam, Kelabu
Di atas 5 Teras: Teras Hitam dengan angka Putih
-Sarung Luar:PVC tersemperit.
 |
 |
 |
3. Standard: NF C32-321
Asap rendah (menurut EN 61034-2)
Acc kalis api. EN 50265-2-1
4. Parameter Kabel:U-1000 R2V
|
Teras tunggal |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Dua teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Tiga teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Empat teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Berbilang teras |
|
|||
|
Keratan Rentas Nominal |
Diameter Konduktor (Anggaran) |
Ketebalan Penebat Nominal |
Ketebalan Sarung Nominal |
Diameter Keseluruhan (Anggaran) |
|
mm^2 |
Mm |
Mm |
Mm |
Mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |

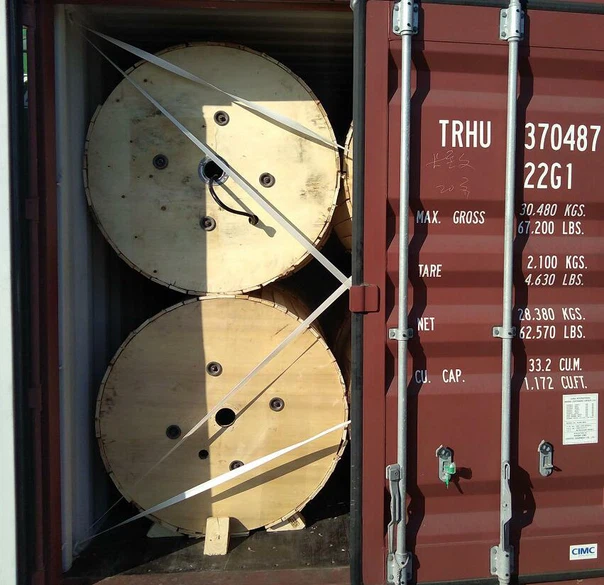

5. Pakej: Eksport dram kayu.
 |
 |
6. Kilang
Shandong Renhui Cable Co., Ltd. ditubuhkan pada tahun 2010, terletak di bandar Jinan, Wilayah Shandong, China. Syarikat itu meliputi kawasan seluas 50 ribu meter persegi, dana berdaftar sebanyak RMB 5 juta, mempunyai 100 kakitangan dan pekerja. Kami adalah pengilang kabel profesional di China.
Produk terutamanya meliputi kabel voltan rendah dan sederhana, kabel berpenebat PVC, kabel berpenebat XLPE, kabel kawalan, kabel komunikasi, kabel getah, kabel lombong, kabel kimpalan, kabel kapal, kabel udara dan kabel tersuai lain yang berkaitan. Kabel ini digunakan dalam Metalurgi Kuasa, Industri Minyak & Kimia, Stesen Janakuasa, Lombong, Pelabuhan dan Kejuruteraan Senibina, dan bidang lain.
Produk tersebut telah dijual ke 50 negara dan wilayah di dunia, seperti Jerman, Perancis, Dubai, Oman, Singapura, Vietnam, Pakistan, Filipina, Sri Lanka, Tanzania, Yaman, Kenya, Mongolia, Rusia, Algeria, Bahrain, Brazil , Chile, Cyprus, Indonesia, Iran, Malaysia.
 |
 |
 |
 |
