1. Nama produk: Kabel Kuasa Tembaga XLPE/SWA/PVC
Kabel kuasa sesuai untuk rangkaian kuasa, pengebumian terus, di luar, dalam dan dalam saluran kabel.
 |
 |
 |

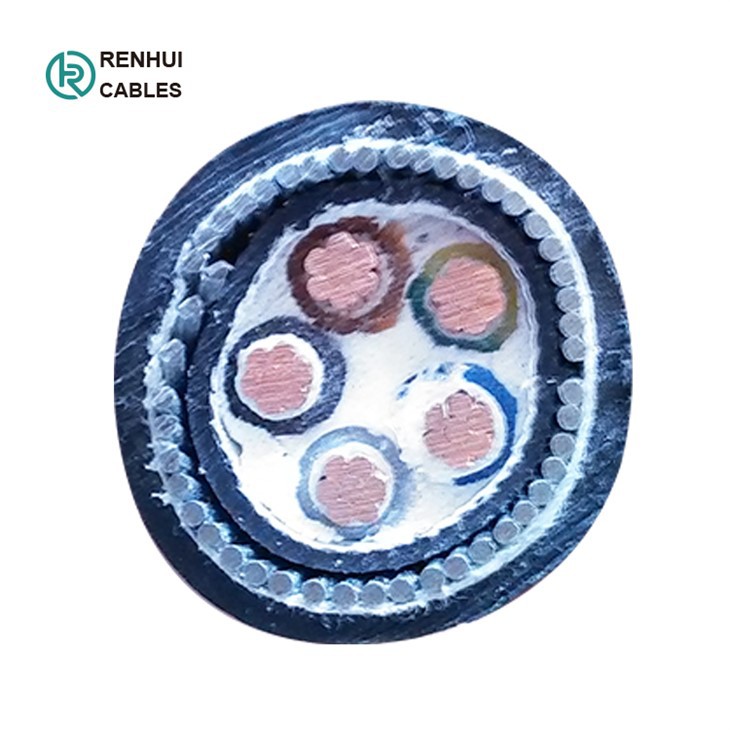

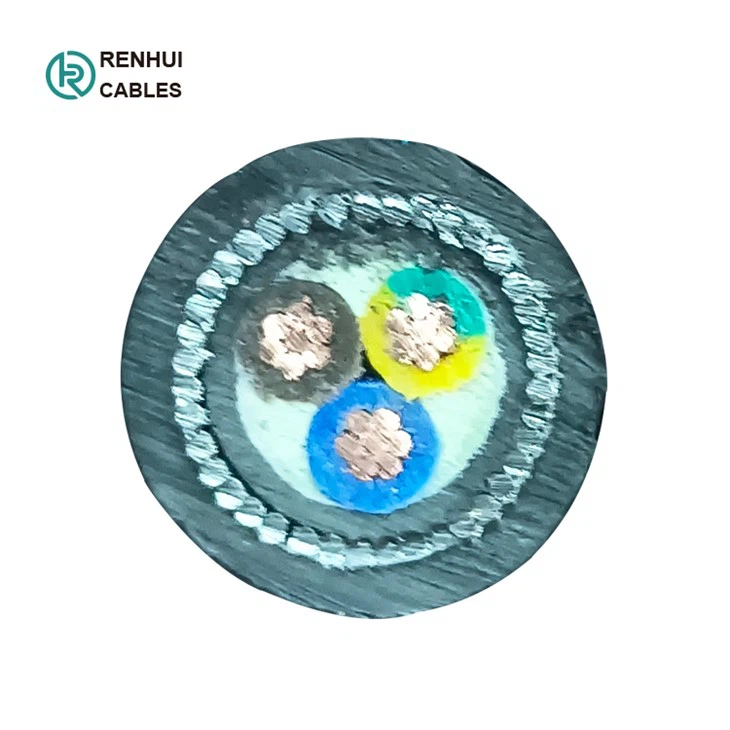

2. Lukisan Kabel Kuasa Tembaga XLPE/SWA/PVC
|
 |
 |
 |
3. Butiran kabel: Kabel Kuasa Tembaga XLPE/SWA/PVC
|
Bahan Konduktor: |
Kuprum, IEC60228 |
|
Konduktor : |
Pengalir kuprum pepejal atau terkandas |
|
Penebat: |
XLPE (Polyetilena Berpaut silang), IEC60502-1 |
|
Jenis Perisai: |
Wayar keluli bergalvani berperisai |
|
Sarung Luar: |
PVC, IEC60502-1 |
|
Sarung Dalam: |
PVC, IEC60502-1 |
|
Warna Sarung: |
Hitam |
|
Bebas plumbum: |
ya |
|
Voltan Berkadar Uo/U (Um): |
600/1000V |
|
Suhu Pemasangan: |
Minimum: 0 darjah c Maksimum: 60 darjah |
|
Jenis Pemasangan: |
Pengebumian Langsung Luar |
|
Suhu Operasi: |
Maksimum: 90 darjah |
|
Suhu Konduktor Maksimum litar pintas: |
250 darjah |
|
Tahan api: |
IEC 60332-1 |
| Pengenalan teras: | Dua Teras - Coklat, Biru Tiga Teras – Coklat, Hitam & Kelabu (Pilihan: Coklat, Biru & Hijau/Kuning) Empat Teras – Coklat, Hitam, Kelabu & Biru (Pilihan: Coklat, Hitam, Kelabu & Hijau/Kuning) Lima Teras – Teras Bernombor (Pilihan: Coklat, Hitam, Kelabu, Biru + Hijau/Kuning) Enam Teras dan Ke Atas – Teras Bernombor (bernombor pilihan + Hijau dan Kuning) |
4.Lembaran Data Kabel Kuasa Tembaga XLPE/SWA/PVC
|
Keratan rentas mm2 |
Terdampar mm |
Anggaran berat kg/km |
Diameter keseluruhan lebih kurang |
Saiz kelenjar mm |
Kasut tunggal |
Nom. Maks. Konduktor tahan DC 20 darjah ohm/km |
Penarafan semasa diletakkan amp langsung |
|
2 Teras SWA : Coklat & Biru |
|||||||
|
2 x 1.5 |
7/0.53 |
243 |
11.06 |
16 |
0.5 |
12.10 |
38 |
|
2 x 2.5 |
7/0.67 |
355 |
12.4 |
20s |
0.5 |
7.41 |
49 |
|
2 x 4.0 |
7/0.85 |
393 |
13.38 |
20s |
0.6 |
4.61 |
65 |
|
2 x 6.0 |
7/1.04 |
450 |
14.38 |
20 |
0.6 |
3.08 |
81 |
|
2 x 10 |
7/1.35 |
590 |
16.18 |
20 |
0.7 |
1.83 |
109 |
|
2 x 16 |
7/1.70 |
897 |
19.06 |
25 |
0.8 |
1.15 |
141 |
|
2 x 25 |
7/2.14 |
1,050 |
20.0 |
25 |
0.8 |
0.727 |
183 |
|
2 x 35 |
7/2.52 |
1,400 |
23.2 |
32 |
0.9 |
0.524 |
219 |
|
2 x 50 |
19/1.78 |
1,750 |
25.1 |
32 |
1.0 |
0.387 |
259 |
|
2 x 70 |
19/2.14 |
2,200 |
28.5 |
32 |
1.2 |
0.268 |
317 |
|
2 x 95 |
19/2.52 |
3,100 |
32.9 |
32 |
1.4 |
0.193 |
381 |
|
2 x 120 |
37/2.03 |
3,700 |
35.1 |
40 |
1.4 |
0.153 |
433 |
|
2 x 150 |
37/2.25 |
4,350 |
37.8 |
40 |
1.6 |
0.124 |
485 |
|
2 x 185 |
37/2.52 |
5,700 |
44.7 |
50s |
1.8 |
0.0991 |
547 |
|
2 x 240 |
61/2.25 |
7,280 |
49.0 |
50 |
2.0 |
0.0754 |
632 |
|
2 x 300 |
61/2.52 |
8,750 |
53.4 |
63s |
2.0 |
0.0601 |
708 |
|
2 x 400 |
61/2.85 |
10,700 |
59.0 |
63s |
TC9 |
0.0470 |
- |
|
3 Teras SWA : Coklat, Hitam & Kelabu |
|||||||
|
3 x 1.5 |
7/0.53 |
341 |
12.17 |
16 |
0.5 |
12.10 |
32 |
|
3 x 2.5 |
7/0.67 |
374 |
13.55 |
20s |
0.6 |
7.41 |
42 |
|
3 x 4.0 |
7/0.85 |
458 |
14.68 |
20s |
0.6 |
4.61 |
55 |
|
3 x 6.0 |
7/1.04 |
558 |
15.87 |
20 |
0.7 |
3.08 |
69 |
|
3 x 10 |
7/1.35 |
841 |
18.63 |
20 |
0.8 |
1.83 |
92 |
|
3 x 16 |
7/1.70 |
1,070 |
20.78 |
25 |
0.9 |
1.15 |
119 |
|
3 x 25 |
7/2.14 |
1,625 |
24.9 |
32 |
1.0 |
0.727 |
152 |
|
3 x 35 |
7/2.52 |
1,950 |
27.8 |
32 |
1.1 |
0.524 |
182 |
|
3 x 50 |
19/1.78 |
2,300 |
28.0 |
32 |
1.2 |
0.387 |
217 |
|
3 x 70 |
19/2.14 |
3,075 |
32.2 |
32 |
1.4 |
0.268 |
266 |
|
3 x 95 |
19/2.52 |
4,225 |
37.0 |
40 |
1.6 |
0.193 |
319 |
|
3 x 120 |
37/2.03 |
5,100 |
40.2 |
50s |
1.8 |
0.153 |
363 |
|
3 x 150 |
37/2.25 |
6,510 |
45.3 |
50s |
1.8 |
0.124 |
406 |
|
3 x 185 |
37/2.52 |
7,845 |
49.5 |
50 |
2.0 |
0.0991 |
458 |
|
3 x 240 |
61/2.25 |
9,900 |
55.6 |
63s |
TC9 |
0.0754 |
529 |
|
3 x 300 |
61/2.52 |
13,560 |
59.6 |
63 |
TC10 |
0.0601 |
592 |
|
3 x 400 |
61/2.85 |
14,720 |
65.8 |
75s |
TC11 |
0.0470 |
667 |
|
4 Teras SWA: Coklat, Hitam, Kelabu & Biru |
|||||||
|
4 x 1.5 |
7/0.53 |
351 |
12.88 |
20s |
0.5 |
12.10 |
32 |
|
4 x 2.5 |
7/0.67 |
429 |
14.43 |
20s |
0.6 |
7.41 |
42 |
|
4 x 4.0 |
7/0.85 |
538 |
16.87 |
20 |
0.6 |
4.61 |
55 |
|
4 x 6.0 |
7/1.04 |
670 |
17.87 |
20 |
0.7 |
3.08 |
69 |
|
4 x 10 |
7/1.35 |
998 |
20.1 |
25 |
0.8 |
1.83 |
92 |
|
4 x 16 |
7/1.70 |
1,272 |
22.4 |
25 |
0.9 |
1.15 |
119 |
|
4 x 25 |
7/2.14 |
1,940 |
27.0 |
32 |
1.0 |
0.727 |
152 |
|
4 x 35 |
7/2.52 |
2,390 |
30.1 |
32 |
1.2 |
0.524 |
182 |
|
4 x 50 |
19/1.78 |
2,925 |
31.5 |
32 |
1.4 |
0.387 |
217 |
|
4 x 70 |
19/2.14 |
4,200 |
37.4 |
40 |
1.6 |
0.268 |
266 |
|
4 x 95 |
19/2.52 |
5,355 |
40.9 |
50s |
1.8 |
0.193 |
319 |
|
4 x 120 |
37/2.03 |
6,925 |
46.6 |
50 |
2.0 |
0.153 |
363 |
|
4 x 150 |
37/2.25 |
8,200 |
50.2 |
50s |
2.0 |
0.124 |
406 |
|
4 x 185 |
37/2.52 |
9,975 |
55.8 |
63s |
TC9 |
0.0991 |
458 |
|
4 x 240 |
61/2.52 |
12,700 |
62.5 |
63 |
TC10 |
0.0754 |
529 |
|
4 x 300 |
61/2.85 |
15,275 |
67.4 |
75s |
TC11 |
0.0601 |
592 |
|
4 x 400 |
61/3.20 |
19,875 |
77.0 |
75 |
TC12 |
0.0470 |
667 |
|
5 Teras SWA: Coklat, Hitam, Kelabu, Biru, Kuning&hijau |
|||||||
|
5 x 1.5 |
7/0.53 |
395 |
13.72 |
20s |
0.6 |
12.10 |
32 |
|
5 x 2.5 |
7/0.67 |
497 |
15.46 |
20s |
0.6 |
7.41 |
42 |
|
5 x 4.0 |
7/0.85 |
674 |
17.38 |
20 |
0.7 |
4.61 |
55 |
|
5 x 6.0 |
7/1.04 |
868 |
19.05 |
20 |
0.8 |
3.08 |
69 |
|
5 x 10 |
7/1.35 |
1,197 |
22.06 |
25 |
0.9 |
1.83 |
92 |
|
5 x 16 |
7/1.70 |
1,780 |
24.14 |
25 |
1.1 |
1.15 |
119 |
|
5 x 25 |
7/2.14 |
2,435 |
28.4 |
32 |
1.2 |
0.727 |
152 |
|
5 x 35 |
7/2.52 |
2,800 |
33 |
40 |
1.4 |
0.524 |
182 |
|
5 x 50 |
19/1.78 |
3,850 |
38.0 |
40 |
1.6 |
0.387 |
217 |
|
5 x 70 |
19/2.14 |
5,100 |
42.9 |
50s |
1.8 |
0.268 |
266 |
|
5 x 95 |
19/2.52 |
7,700 |
52.1 |
50 |
TC9 |
0.193 |
319 |
|
7 Teras SWA : Teras Bernombor Putih dengan Cetakan Hitam |
|||||||
|
7 x 1.5 |
7/0.53 |
449 |
14.65 |
20 |
0.6 |
12.10 |
32 |
|
7 x 2.5 |
7/0.67 |
564 |
16.53 |
20 |
0.8 |
7.41 |
42 |
|
7 x 4.0 |
7/0.85 |
824 |
18.96 |
25 |
0.8 |
4.61 |
55 |
|
7 x 6.0 |
7/1.04 |
1,105 |
21.6 |
25 |
0.9 |
3.08 |
69 |
|
7 x 10 |
7/1.35 |
1,610 |
25.3 |
25 |
1 |
1.83 |
98 |
|
7 x 16 |
7/1.70 |
2,225 |
28.45 |
32 |
1.2 |
1.15 |
119 |
|
7 x 25 |
7/2.14 |
3,880 |
38.4 |
40 |
1.4 |
0.727 |
152 |
|
12 Teras SWA : Teras Bernombor Putih dengan Cetakan Hitam |
|||||||
|
12 x 1.5 |
7/0.53 |
756 |
18.9 |
25 |
0.8 |
12.10 |
32 |
|
12 x 2.5 |
7/0.67 |
971 |
21.76 |
25 |
0.9 |
7.41 |
42 |
|
12 x 4.0 |
7/0.85 |
1,403 |
25.97 |
32 |
1.0 |
4.61 |
55 |
|
12 x 6.0 |
7/1.04 |
1,910 |
28.1 |
32 |
1.2 |
3.08 |
69 |
|
12 x 10 |
7/1.35 |
2,590 |
32.4 |
32 |
1.4 |
1.83 |
98 |
|
19 Teras SWA : Teras Bernombor Putih dengan Cetakan Hitam |
|||||||
|
19 x 1.5 |
7/0.53 |
992 |
21.99 |
25 |
0.9 |
12.10 |
32 |
|
19 x 2.5 |
7/0.67 |
1,447 |
25.63 |
25 |
1.0 |
7.41 |
42 |
|
19 x 4.0 |
7/0.85 |
1,870 |
28.46 |
32 |
1.1 |
4.61 |
55 |
5. Pakej: Eksport dram kayu.
6. Kilang
Shandong Renhui Cable Co., Ltd. ditubuhkan pada tahun 2010, terletak di bandar Jinan, Wilayah Shandong, China. Syarikat itu meliputi kawasan seluas 50 ribu meter persegi, dana berdaftar sebanyak RMB 5 juta, mempunyai 100 kakitangan dan pekerja. Kami adalah pengilang kabel profesional di China.
Produk terutamanya meliputi kabel voltan rendah dan sederhana, kabel berpenebat PVC, kabel berpenebat XLPE, kabel kawalan, kabel komunikasi, kabel getah, kabel lombong, kabel kimpalan, kabel kapal, kabel udara dan kabel tersuai lain yang berkaitan. Kabel ini digunakan dalam Metalurgi Kuasa, Industri Minyak & Kimia, Stesen Janakuasa, Lombong, Pelabuhan dan Kejuruteraan Senibina, dan bidang lain.
Produk tersebut telah dijual ke 50 negara dan wilayah di dunia, seperti Jerman, Perancis, Dubai, Oman, Singapura, Vietnam, Pakistan, Filipina, Sri Lanka, Tanzania, Yaman, Kenya, Mongolia, Rusia, Algeria, Bahrain, Brazil , Chile, Cyprus, Indonesia, Iran, Malaysia.
 |
 |
 |
 |
 |
 |
