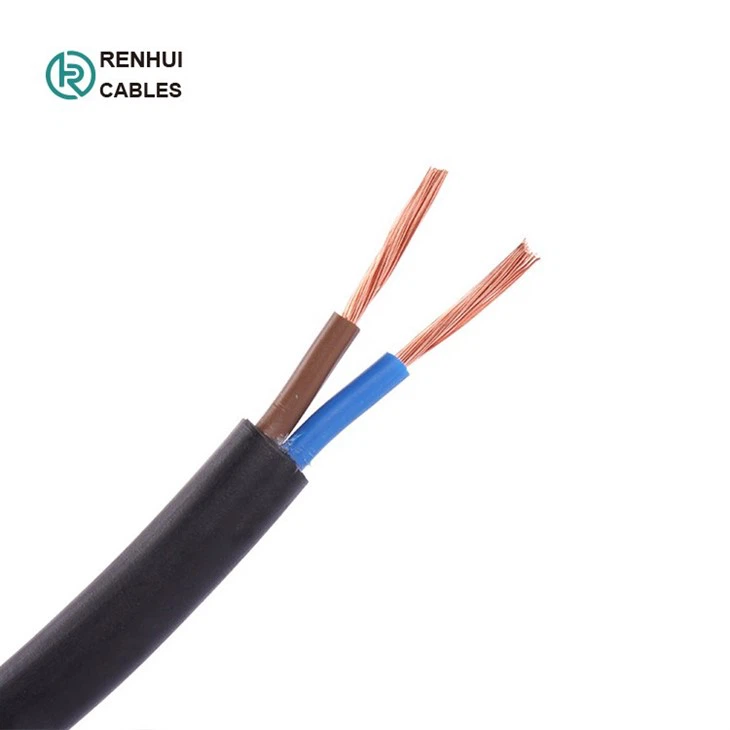

1.Permohonan(Kabel LiYY):
Untuk kabel isyarat dan kawalan dalam elektronik sistem komputer, peralatan kawalan elektronik, mesin pejabat atau unit kawalan proses.
 |
 |
 |
 |
2.Piawaian(Kabel LiYY):
IEC 60332
3.Pembinaan Kabel(Kabel LiYY):
|
|
4.Parameter (Kabel LiYY):
|
Kawasan Bahagian |
Voltan Ternilai |
Ujian Voltan |
Min. Penebat |
|
0.14-0.34mm2 |
250/250V |
1200V |
200 |
|
0.5-0.75mm2 |
300V |
2000V |
200 |
|
1.0-1.5mm2 |
300/500V |
3000V |
200 |
|
No.of |
Konduktor |
Penebat |
sarung |
Keseluruhannya |
Maks. DCR |
|
0.14mm2 |
|||||
|
2 |
12/0.12 |
0.35 |
0.4 |
3.2 |
148 |
|
3 |
12/0.12 |
0.35 |
0.4 |
3.5 |
148 |
|
4 |
12/0.12 |
0.35 |
0.5 |
3.9 |
148 |
|
5 |
12/0.12 |
0.35 |
0.5 |
4.3 |
148 |
|
7 |
12/0.12 |
0.35 |
0.6 |
4.8 |
148 |
|
8 |
12/0.12 |
0.35 |
0.6 |
5.2 |
148 |
|
10 |
12/0.12 |
0.35 |
0.7 |
6.2 |
148 |
|
12 |
12/0.12 |
0.35 |
0.7 |
6.5 |
148 |
|
14 |
12/0.12 |
0.35 |
0.7 |
6.7 |
148 |
|
0.25mm2 |
|||||
|
2 |
14/0.15 |
0.4 |
0.4 |
3.6 |
79.9 |
|
3 |
14/0.15 |
0.4 |
0.4 |
3.9 |
79.9 |
|
4 |
14/0.15 |
0.4 |
0.5 |
4.4 |
79.9 |
|
5 |
14/0.15 |
0.4 |
0.5 |
4.8 |
79.9 |
|
7 |
14/0.15 |
0.4 |
0.6 |
5.4 |
79.9 |
|
8 |
14/0.15 |
0.4 |
0.6 |
5.8 |
79.9 |
|
10 |
14/0.15 |
0.4 |
0.7 |
7 |
79.9 |
|
12 |
14/0.15 |
0.4 |
0.7 |
7.3 |
79.9 |
|
14 |
14/0.15 |
0.4 |
0.7 |
7.6 |
79.9 |
|
0.34mm2 |
|||||
|
2 |
20/0.15 |
0.4 |
0.5 |
4.2 |
57 |
|
3 |
20/0.15 |
0.4 |
0.5 |
4.5 |
57 |
|
4 |
20/0.15 |
0.4 |
0.6 |
5.1 |
57 |
|
5 |
20/0.15 |
0.4 |
0.6 |
5.5 |
57 |
|
7 |
20/0.15 |
0.4 |
0.7 |
6.2 |
57 |
|
8 |
20/0.15 |
0.4 |
0.7 |
6.7 |
57 |
|
10 |
20/0.15 |
0.4 |
0.8 |
8 |
57 |
|
12 |
20/0.15 |
0.4 |
0.8 |
8.3 |
57 |
|
14 |
20/0.15 |
0.4 |
0.8 |
8.7 |
57 |
|
0.5mm2 |
|||||
|
2 |
16/0.20 |
0.45 |
0.6 |
4.8 |
39 |
|
3 |
16/0.20 |
0.45 |
0.6 |
5.2 |
39 |
|
4 |
16/0.20 |
0.45 |
0.6 |
5.6 |
39 |
|
5 |
16/0.20 |
0.45 |
0.6 |
6.1 |
39 |
|
7 |
16/0.20 |
0.45 |
0.6 |
6.6 |
39 |
|
8 |
16/0.20 |
0.45 |
0.7 |
7.4 |
39 |
|
10 |
16/0.20 |
0.45 |
0.7 |
8.6 |
39 |
|
12 |
16/0.20 |
0.45 |
0.8 |
9.2 |
39 |
|
14 |
16/0.20 |
0.45 |
0.9 |
9.8 |
39 |
|
0.75mm2 |
|||||
|
2 |
24/0.20 |
0.5 |
0.6 |
5.4 |
26 |
|
3 |
24/0.20 |
0.5 |
0.6 |
5.8 |
26 |
|
4 |
24/0.20 |
0.5 |
0.6 |
6.3 |
26 |
|
5 |
24/0.20 |
0.5 |
0.7 |
7.1 |
26 |
|
7 |
24/0.20 |
0.5 |
0.7 |
7.7 |
26 |
|
8 |
24/0.20 |
0.5 |
0.8 |
8.6 |
26 |
|
10 |
24/0.20 |
0.5 |
0.8 |
10 |
26 |
|
12 |
24/0.20 |
0.5 |
0.9 |
10.6 |
26 |
|
14 |
24/0.20 |
0.5 |
1 |
11.3 |
26 |
|
1.0mm2 |
|||||
|
2 |
32/0.20 |
0.6 |
0.6 |
6.2 |
19.5 |
|
3 |
32/0.20 |
0.6 |
0.6 |
6.7 |
19.5 |
|
4 |
32/0.20 |
0.6 |
0.7 |
7.5 |
19.5 |
|
5 |
32/0.20 |
0.6 |
0.7 |
8.2 |
19.5 |
|
7 |
32/0.20 |
0.6 |
0.8 |
9.1 |
19.5 |
|
1.5mm2 |
|||||
|
2 |
30/0.25 |
0.6 |
0.6 |
6.8 |
13.3 |
|
3 |
30/0.25 |
0.6 |
0.7 |
7.6 |
13.3 |
|
4 |
30/0.25 |
0.6 |
0.7 |
8.2 |
13.3 |
|
5 |
30/0.25 |
0.6 |
0.8 |
9.2 |
13.3 |
|
7 |
30/0.25 |
0.6 |
0.9 |
10.5 |
13.3 |
5. Kemajuan Pengeluaran
6. Sijil:
 |
 |
7. pembungkusan:
-Gendang kayu keluli (pengasapan)
Panjang kabel dalam setiap dram: 1000m/2000m atau mengikut keperluan panjang kabel sebenar.
-Saiz gendang:
Mengikut panjang kabel dan saiz bekas
Untuk memetik harga yang tepat kepada anda, sila beritahu kami kuantiti panjang kabel yang anda perlukan. Kuantiti yang lebih besar, lebih banyak faedah diskaun sedia untuk anda!
-Pelabuhan Penghantaran:
Qingdao, atau pelabuhan lain mengikut keperluan anda.
-Pengangkutan laut:
Sebut harga FOB/C&F/CIF semuanya tersedia.
 |
 |
 |
